HikvisionAreaScan

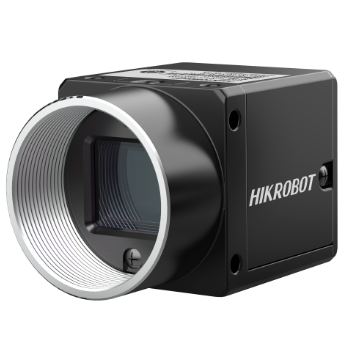

MV-CS040-A0UM
Key Feature Adopts Global CMOS sensor providing high signal-to-noise ratio, wide dynamic range and high quality images. Resolution of 2048 × 2048, pixel size of 5.5. Supports hardware trigger, software trigger, and free run. Compact design with mounting holes on panels for flexible mounting from 4 sides. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard. Available Model MV-CS040-A0UM Dimension *The d
상세 스펙
| 시리즈 | CS AreaScan |
| 제조사 | Hikvision |
| 센서 크기 | 11.3 x 11.3 mm |
| 픽셀 크기 | 5.5 µm |
| 해상도 | 2048 × 2048 |
| 속도 | 90.1 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | USB3.0 |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 30 (1.1" × 1.1" × 1.2") |
| 무게 | Approx. 88 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| 소비전력 | 2.4 |
빠른 스펙
해상도2048 × 2048
속도90.1 fps
인터페이스USB3.0
셔터Global
센서-
