HikvisionAreaScan

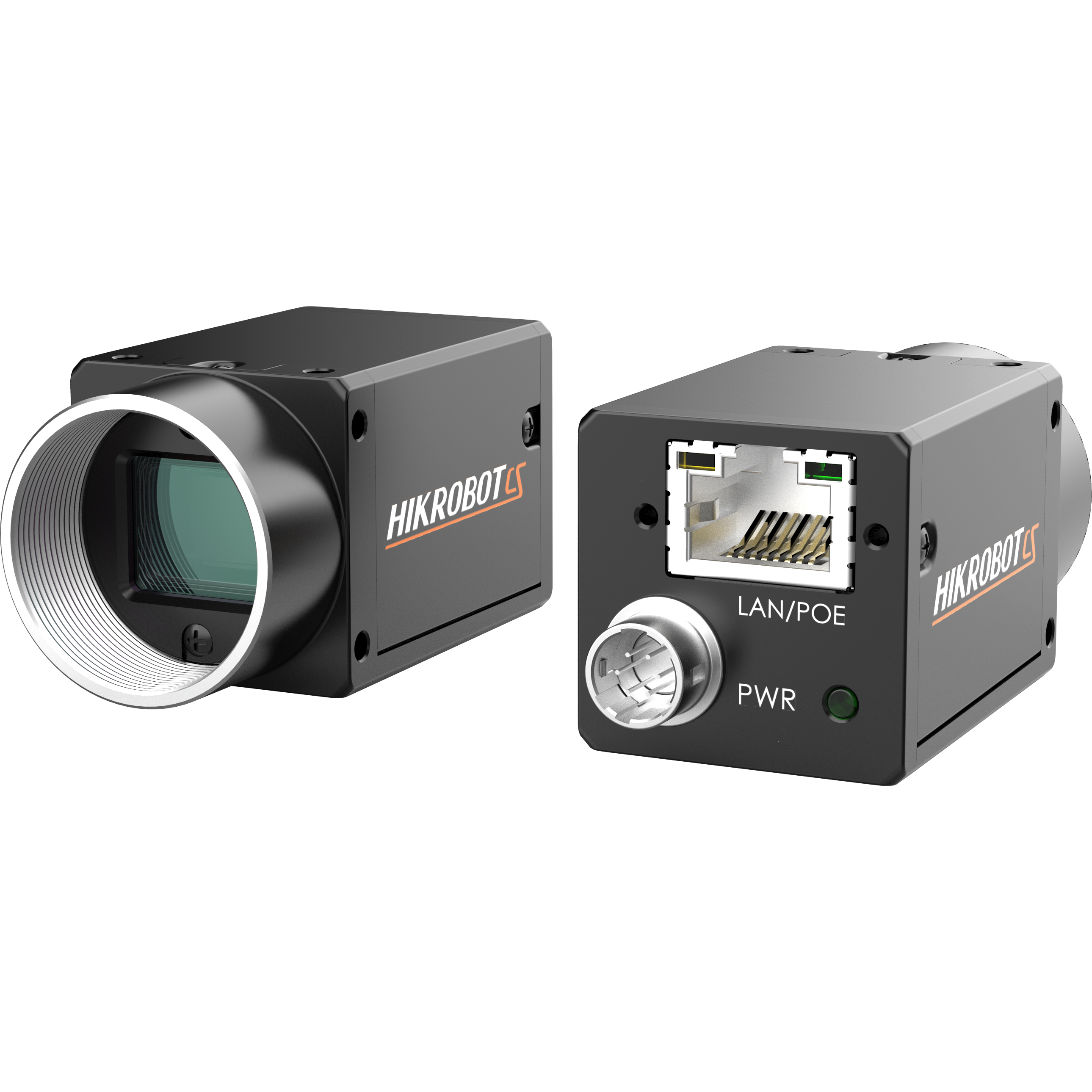

MV-CS050-10GM-PRO
Key Feature Adopts brand new design to reduce power consumption. Supports image compression mode and noise reduction function. Compact design with mounting holes on panels for flexible mounting from 4 sides. Adopts GigE interface and max. transmission distance of 100 meters without relay. Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard. Available Model MV-CS050-10GM-PRO Dimension *The data herein may vary based on th
상세 스펙
| 시리즈 | CS AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Sony |
| 센서 | Sony® IMX264 |
| 센서 크기 | 8.4 x 7.1 mm |
| 픽셀 크기 | 3.45 µm |
| 해상도 | 2448 × 2048 |
| 속도 | 24.2 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | GigE |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 42 (1.1" × 1.1" × 1.2") |
| 무게 | Approx. 100 g (0.22 lb.) |
| 전원 | 9 VDC to 24 VDC, supports PoE |
| 소비전력 | 2.6 |
빠른 스펙
해상도2448 × 2048
속도24.2 fps
인터페이스GigE
셔터Global
센서Sony® IMX264
