HikvisionAreaScan

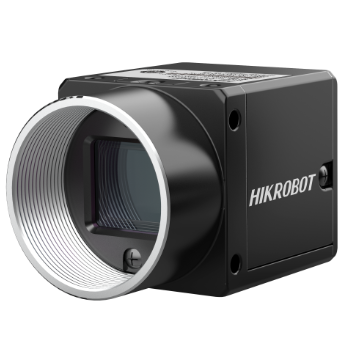

MV-CS050-10UM
Key Feature Adopts brand new design to reduce power consumption. Supports LSC, Sequencer, Super Palette, etc. Supports hardware trigger, software trigger, and free run. Compact design with mounting holes on panels for flexible mounting from 4 sides. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard. Available Model MV-CS050-10UM Dimension *The data herein may vary based on the environment, objects and other various fact
상세 스펙
| 시리즈 | CS AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Sony |
| 센서 | Sony® IMX264 |
| 센서 크기 | 8.4 x 7.1 mm |
| 픽셀 크기 | 3.45 µm |
| 해상도 | 2448 × 2048 |
| 속도 | 60 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | USB3.0 |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 30 (1.1" × 1.1" × 1.2") |
| 무게 | Approx. 80 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, supports USB3.0 power supply |
| 소비전력 | 3.2 |
빠른 스펙
해상도2448 × 2048
속도60 fps
인터페이스USB3.0
셔터Global
센서Sony® IMX264
