HikvisionAreaScan

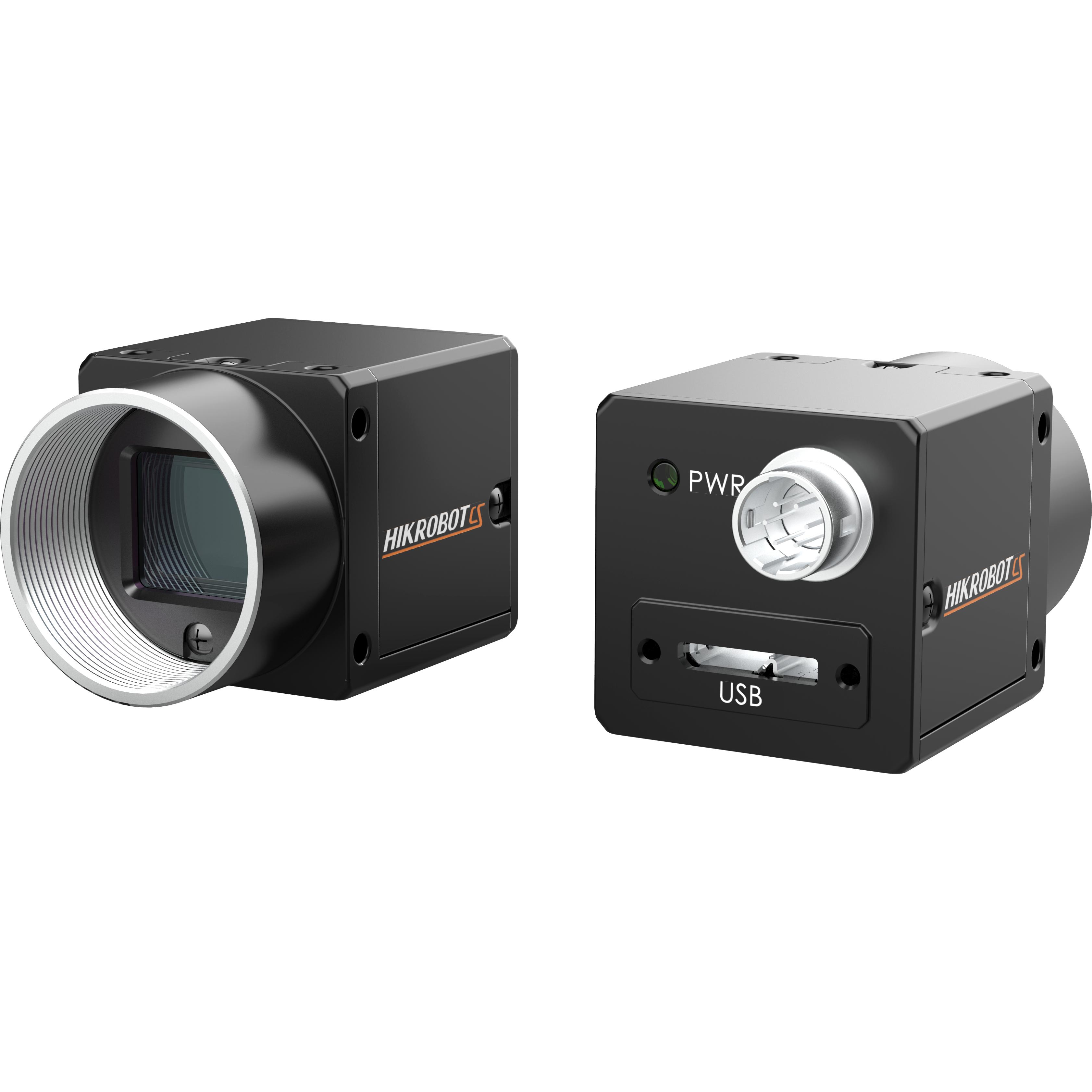

MV-CS050-60UM
Key Feature Adopts brand new structure design and supports installation from four sides. Supports Super Palette and Super Bayer to provide high-quality images. Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc., and supports Sequencer. Supports hard trigger, software trigger, free run, etc. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard. Available Model MV-CS050-60UM
상세 스펙
| 시리즈 | CS AreaScan |
| 제조사 | Hikvision |
| 센서 | Stacked BSI |
| 센서 크기 | 8.4 x 7.1 mm |
| 픽셀 크기 | 3.45 µm |
| 해상도 | 2448 × 2048 |
| 속도 | 60 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | USB3.0 |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 30 (1.1" × 1.1" × 1.2") |
| 무게 | Approx. 80 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, supports USB3.0 power supply |
| 소비전력 | 1.7 |
빠른 스펙
해상도2448 × 2048
속도60 fps
인터페이스USB3.0
셔터Global
센서Stacked BSI
