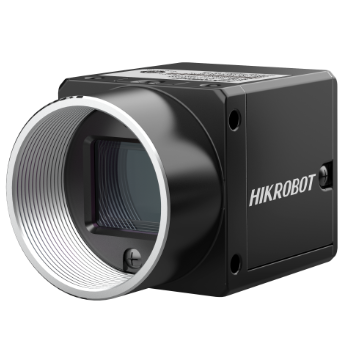

MV-CS050-60UM V5

Key Feature Adopts brand new structure design and supports installation from four sides. Supports Super Palette and Super Bayer to provide high-quality images. Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc., and supports Sequencer. Supports hardware trigger, software trigger, anyway mode, etc. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.   Available Model MV-CS0

상세 스펙

시리즈	CS AreaScan
제조사	Hikvision
센서	Stacked BSI
센서 크기	8.4 x 7.1 mm
픽셀 크기	3.45 µm
해상도	2448 × 2048
속도	60 fps
셔터	Global
컬러/모노	Mono
인터페이스	USB3.0
마운트	C
제품 크기	29 × 29 × 30 (1.1" × 1.1" × 1.2")
무게	Approx. 80 g (0.2 lb.)
전원	9 VDC to 24 VDC, supports USB 3.0 power supply
소비전력	1.5
