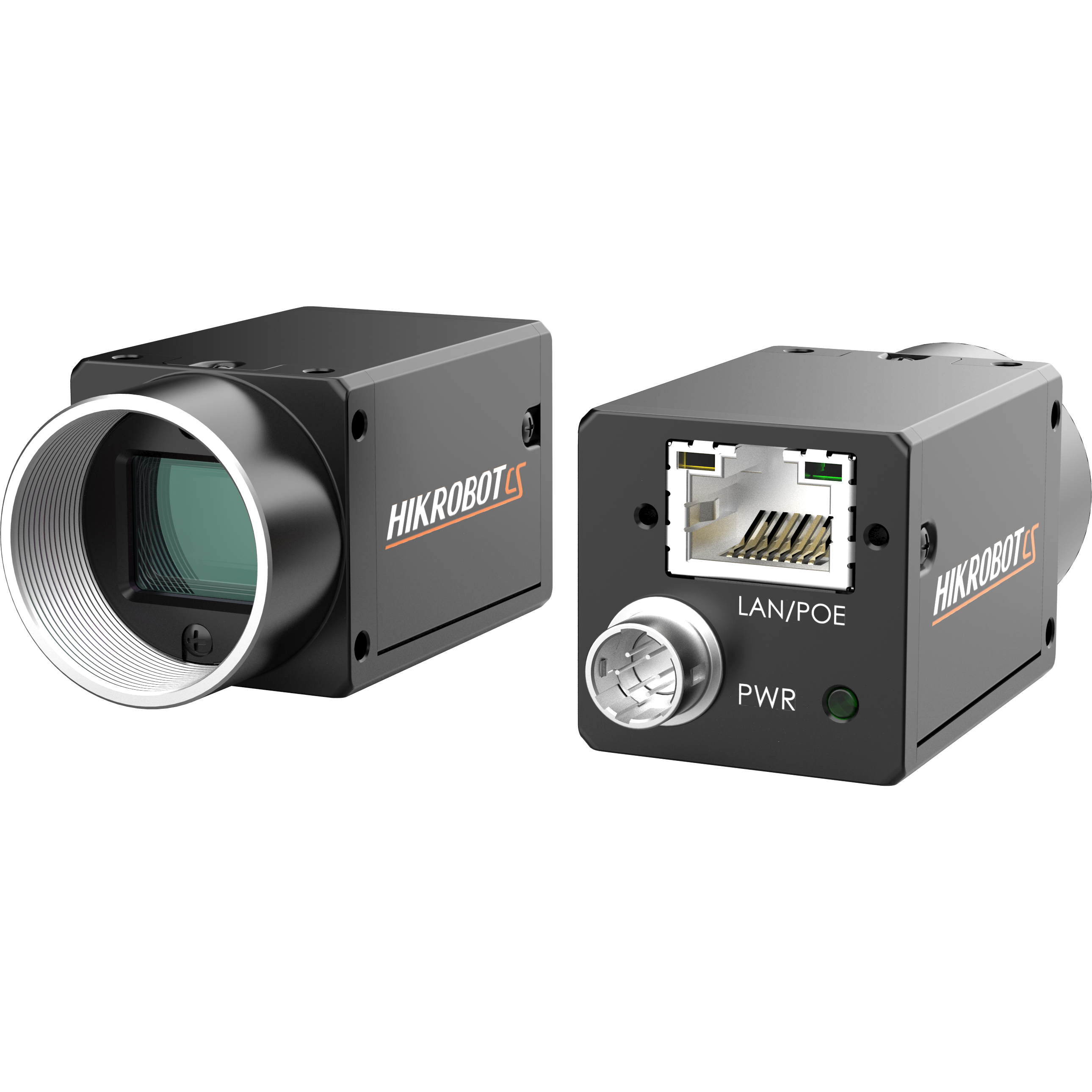

HikvisionAreaScan
MV-CS060-10GC-PRO
Key Feature Adopts brand new design to reduce power consumption. Supports image compression mode and noise reduction function. Compact design with mounting holes on panels for flexible mounting from 4 sides. Adopts GigE interface and max. transmission distance of 100 meters without relay. Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard. Available Model MV-CS060-10GC-PRO Dimension *The data herein may vary based on th
상세 스펙
| 시리즈 | CS AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Sony |
| 센서 | Sony® IMX178 |
| 센서 크기 | 7.4 x 4.9 mm |
| 픽셀 크기 | 2.4 µm |
| 해상도 | 3072 × 2048 |
| 속도 | 19.1 fps |
| 셔터 | Rolling |
| 컬러/모노 | Mono |
| 인터페이스 | GigE |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 42 (1.1" × 1.1" × 1.7") |
| 무게 | Approx. 100 g (0.22 lb.) |
| 전원 | 9 VDC to 24 VDC, supports PoE |
| 소비전력 | 2.5 |
빠른 스펙
해상도3072 × 2048
속도19.1 fps
인터페이스GigE
셔터Rolling
센서Sony® IMX178
