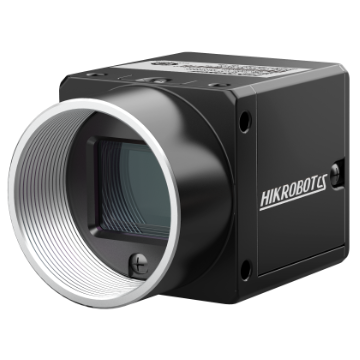

MV-CS060-10UC

Key Feature Adopts brand new design to reduce power consumption. Supports auto or manual adjustment for gain, exposure time, white balance, LUT, and Gamma correction. Compact design with mounting holes on panels for flexible mounting from 4 sides. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.   Available Model MV-CS060-10UC Dimension *The data herein may vary based on the environment, objects and other various factor

MV-CS060-10UC

상세 스펙

시리즈CS AreaScan
제조사Hikvision
센서 제조사Sony
센서Sony® IMX178
센서 크기7.4 x 4.9 mm
픽셀 크기2.4 µm
해상도3072 × 2048
속도60.9 fps
셔터Rolling
컬러/모노Color
인터페이스USB3.0
마운트C
제품 크기29 × 29 × 30 (1.1" × 1.1" × 1.2")
무게Approx. 80 g (0.2 lb.)
전원9 VDC to 24 VDC, supports USB 3.0 power supply
소비전력1.5

동일 센서 제품

Sony® IMX178

제품 문의

견적 및 기술 문의는 아래로 연락해 주세요.

견적 문의하기sales@dnsvts.com

다운로드

빠른 스펙

해상도3072 × 2048
속도60.9 fps
인터페이스USB3.0
셔터Rolling
센서Sony® IMX178
