HikvisionAreaScan

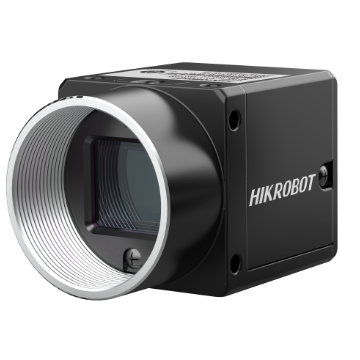

MV-CS060-10UC-PRO
Key Feature Adopts brand new design to reduce power consumption. Compact design with mounting holes on panels for flexible mounting from 4 sides. Adopts Sony® IMX178 sensor to provide high sensitivity, wide dynamic range, and low noise. Supports image compression mode and noise reduction function. Adopts active alignment techniques for assembling. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard. Available Model MV-CS0

상세 스펙
| 시리즈 | CS AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Sony |
| 센서 | Sony® IMX178 |
| 센서 크기 | 7.4 x 4.9 mm |
| 픽셀 크기 | 2.4 µm |
| 해상도 | 3072 × 2048 |
| 속도 | 59.6 fps |
| 셔터 | Rolling |
| 컬러/모노 | Mono |
| 인터페이스 | USB3.0 |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 30 (1.1" × 1.1" × 1.2") |
| 무게 | Approx. 80 g (0.18 lb.) |
| 전원 | 9 VDC to 24 VDC, supports USB3.0 power supply |
| 소비전력 | 2.5 |
빠른 스펙
해상도3072 × 2048
속도59.6 fps
인터페이스USB3.0
셔터Rolling
센서Sony® IMX178
