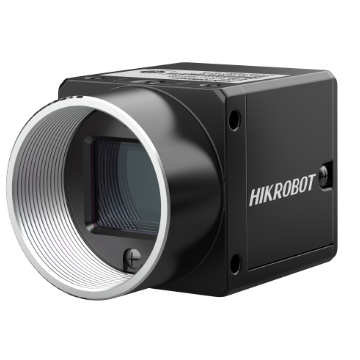

MV-CS060-10UM-PRO

Key Feature Adopts brand new design to reduce power consumption. Compact design with mounting holes on panels for flexible mounting from 4 sides. Adopts Sony® IMX178 sensor to provide high sensitivity, wide dynamic range, and low noise. Supports image compression mode and noise reduction function. Adopts active alignment techniques for assembling. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.   Available Model MV-CS0

MV-CS060-10UM-PRO

상세 스펙

시리즈CS AreaScan
제조사Hikvision
센서 제조사Sony
센서Sony® IMX178
센서 크기7.4 x 4.9 mm
픽셀 크기2.4 µm
해상도3072 × 2048
속도59.6 fps
셔터Rolling
컬러/모노Mono
인터페이스USB3.0
마운트C
제품 크기29 × 29 × 30 (1.1" × 1.1" × 1.2")
무게Approx. 80 g (0.18 lb.)
전원9 VDC to 24 VDC, supports USB3.0 power supply
소비전력2.3

동일 센서 제품

Sony® IMX178

제품 문의

견적 및 기술 문의는 아래로 연락해 주세요.

견적 문의하기sales@dnsvts.com

다운로드

빠른 스펙

해상도3072 × 2048
속도59.6 fps
인터페이스USB3.0
셔터Rolling
센서Sony® IMX178
