HikvisionAreaScan

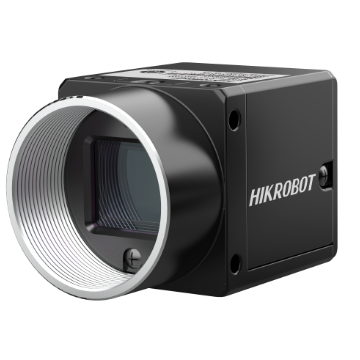

MV-CS200-10UC V5
Key Feature Supports auto or manual adjustment of gain, exposure time, white balance, Gamma, and LUT correction, etc. Supports customer ROI, horizontal mirroring, and vertical mirroring. Supports software trigger, hardware trigger (differential encoder), and free run mode. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard. Compact design with mounting holes on panels for flexible mounting from 4 sides. Available Model M

상세 스펙
| 시리즈 | CS AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Sony |
| 센서 | Sony® IMX183 |
| 센서 크기 | 13.1 x 8.8 mm |
| 픽셀 크기 | 2.4 µm |
| 해상도 | 5472 × 3648 |
| 속도 | 19.2 fps |
| 셔터 | Rolling |
| 컬러/모노 | Color |
| 인터페이스 | USB3.0 |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 30 (1.1" × 1.1" × 1.2") |
| 무게 | Approx. 80 g (0.18 lb.) |
| 전원 | 9 VDC to 24 VDC, supports USB power supply |
| 소비전력 | 1.7 |
빠른 스펙
해상도5472 × 3648
속도19.2 fps
인터페이스USB3.0
셔터Rolling
센서Sony® IMX183
