HikvisionAreaScan

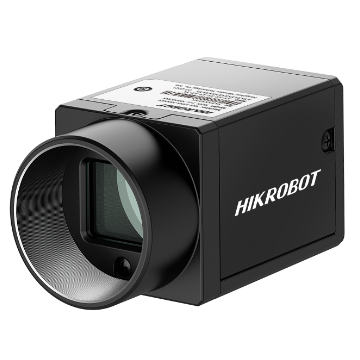

MV-CU004-10GC V2
Key Feature Adopts low consumption design with stable performance. Supports auto and manual adjustment of gain, exposure time, etc. Supports hardware trigger, software trigger, and free run, etc. Adopts GigE interface and max. transmission distance of 100 meters without relay. Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard. Available Model MV-CU004-10GC V2 Dimension *The data herein may vary based on the environment
상세 스펙
| 시리즈 | CU AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Sony |
| 센서 | Sony® IMX297 |
| 센서 크기 | 5.0 x 3.7 mm |
| 픽셀 크기 | 6.9 µm |
| 해상도 | 720 × 540 |
| 속도 | 126.5 fps |
| 셔터 | Global |
| 컬러/모노 | Color |
| 인터페이스 | GigE |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 42 (1.1" × 1.1" × 1.7") |
| 무게 | Approx. 100 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, PoE is optional |
| 소비전력 | 2 |
빠른 스펙
해상도720 × 540
속도126.5 fps
인터페이스GigE
셔터Global
센서Sony® IMX297
