HikvisionAreaScan

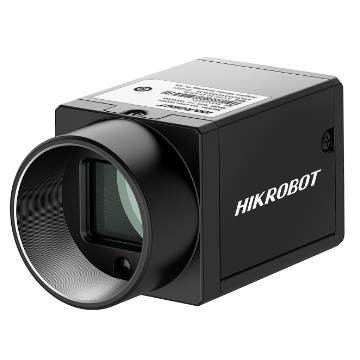

MV-CU013-80GC V2
Key Feature Supports auto or manual adjustments of gain, exposure time, LUT, Gamma correction, etc. Adopts GigE interface and max. transmission distance of 100 meters without relay. Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard. Available Model MV-CU013-80GC V2 Dimension *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising ther
상세 스펙
| 시리즈 | CU AreaScan |
| 제조사 | Hikvision |
| 센서 | SS |
| 센서 크기 | 5.1 x 4.1 mm |
| 픽셀 크기 | 4 µm |
| 해상도 | 1280 × 1024 |
| 속도 | 89.9 fps |
| 셔터 | Global |
| 컬러/모노 | Color |
| 인터페이스 | GigE |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 42 (1.1" × 1.1" × 1.7") |
| 무게 | Approx. 100 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, PoE is optional |
| 소비전력 | 2.2 |
빠른 스펙
해상도1280 × 1024
속도89.9 fps
인터페이스GigE
셔터Global
센서SS
