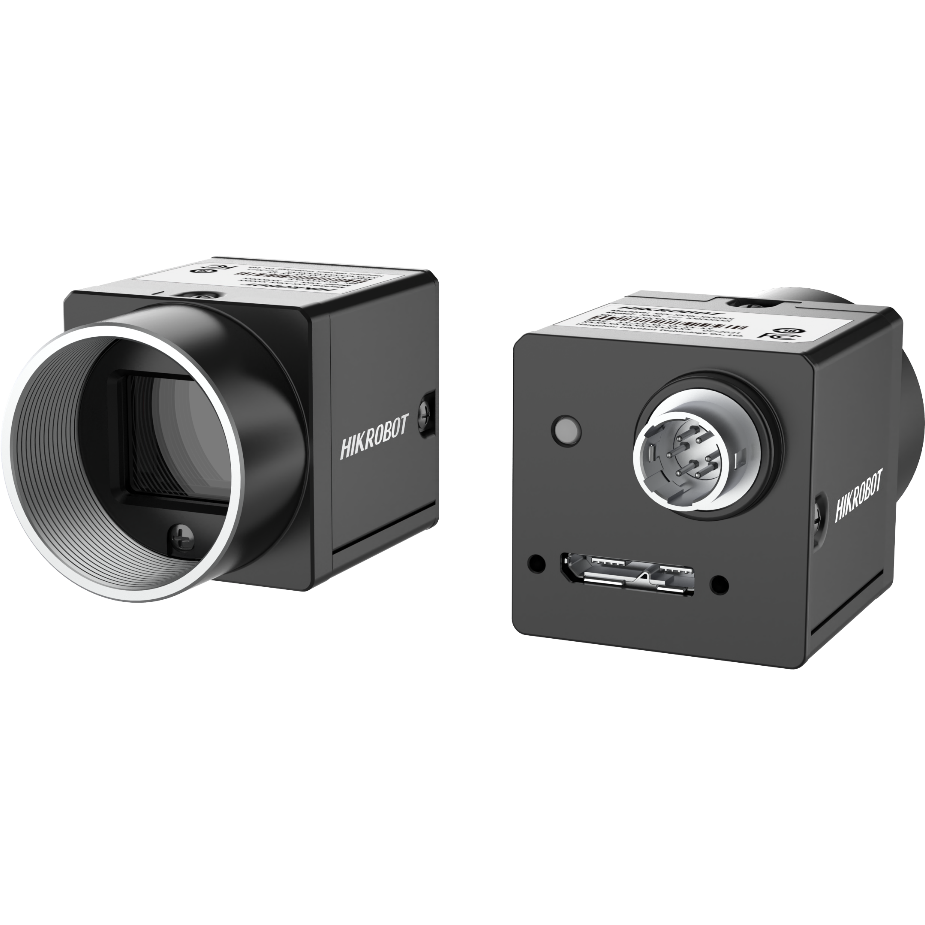

HikvisionAreaScan
MV-CU013-80UM
Key Feature Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc. Supports hardware trigger, software trigger, free run, etc. Adopts compact design for flexible installation. Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard. Available Model MV-CU013-80UM Dimension *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall n
상세 스펙
| 시리즈 | CU AreaScan |
| 제조사 | Hikvision |
| 센서 | SS |
| 센서 크기 | 5.1 x 4.1 mm |
| 픽셀 크기 | 4 µm |
| 해상도 | 1280 × 1024 |
| 속도 | 240.4 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | USB3.0 |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 30 (1.1" × 1.1" × 1.2") |
| 무게 | Approx. 77 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, supports USB3.0 power supply |
| 소비전력 | 1.7 |
빠른 스펙
해상도1280 × 1024
속도240.4 fps
인터페이스USB3.0
셔터Global
센서SS
