HikvisionAreaScan

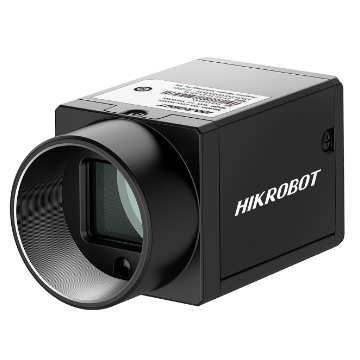

MV-CU013-A0GM V2
Key Feature Adopts low power consumption design with stable performance. Supports auto or manual adjustment of gain, exposure time etc. Supports hardware trigger, software trigger, free run, etc. Adopts GigE interface and max. transmission distance of 100 meters without relay. Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard. Available Model MV-CU013-A0GM V2 Dimension *The data herein may vary based on the environment
상세 스펙
| 시리즈 | CU AreaScan |
| 제조사 | Hikvision |
| 센서 크기 | 6.1 x 4.9 mm |
| 픽셀 크기 | 4.8 µm |
| 해상도 | 1280 × 1024 |
| 속도 | 90.2 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | GigE |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 42 (1.1" × 1.1" × 1.7") |
| 무게 | Approx. 100 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, PoE is optional |
| 소비전력 | 1.8 |
빠른 스펙
해상도1280 × 1024
속도90.2 fps
인터페이스GigE
셔터Global
센서-
