HikvisionAreaScan

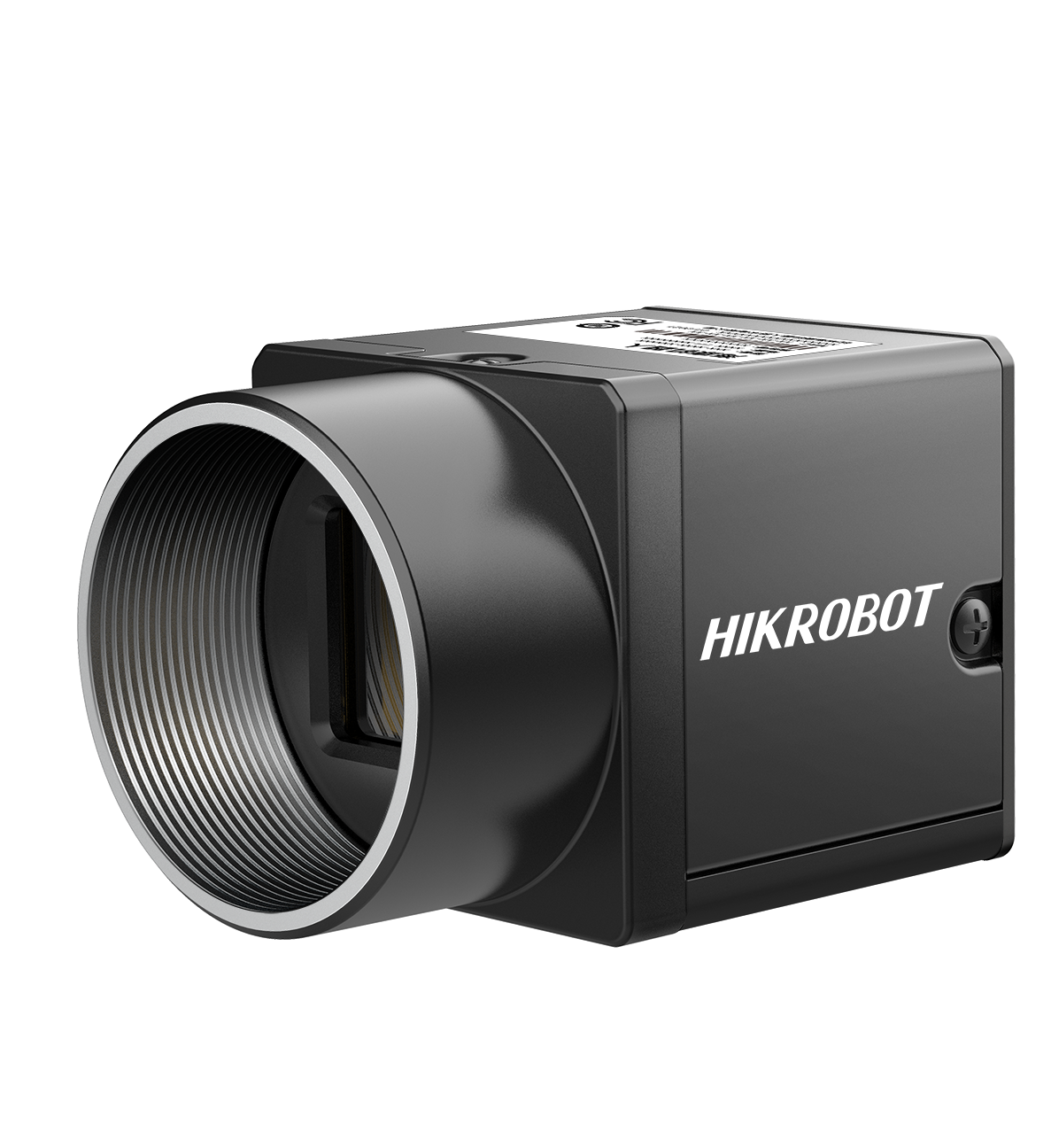

MV-CU013-A1UC
Key Feature Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc. Supports Sequencer and multiple ISP functions to provide high-quality images. Supports customized ROI, horizontal and vertical reverse image output. Adopts compact design for flexible installation. Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard. Available Model MV-CU013-A1UC Dimension *The data here
상세 스펙
| 시리즈 | CU AreaScan |
| 제조사 | Hikvision |
| 센서 크기 | 6.1 x 4.9 mm |
| 픽셀 크기 | 4.8 µm |
| 해상도 | 1280 × 1024 |
| 속도 | 210 fps |
| 셔터 | Global |
| 컬러/모노 | Color |
| 인터페이스 | USB3.0 |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 30 (1.1" × 1.1" × 1.2") |
| 무게 | Approx. 76 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, supports USB power supply |
| 소비전력 | 2.1 |
빠른 스펙
해상도1280 × 1024
속도210 fps
인터페이스USB3.0
셔터Global
센서-
