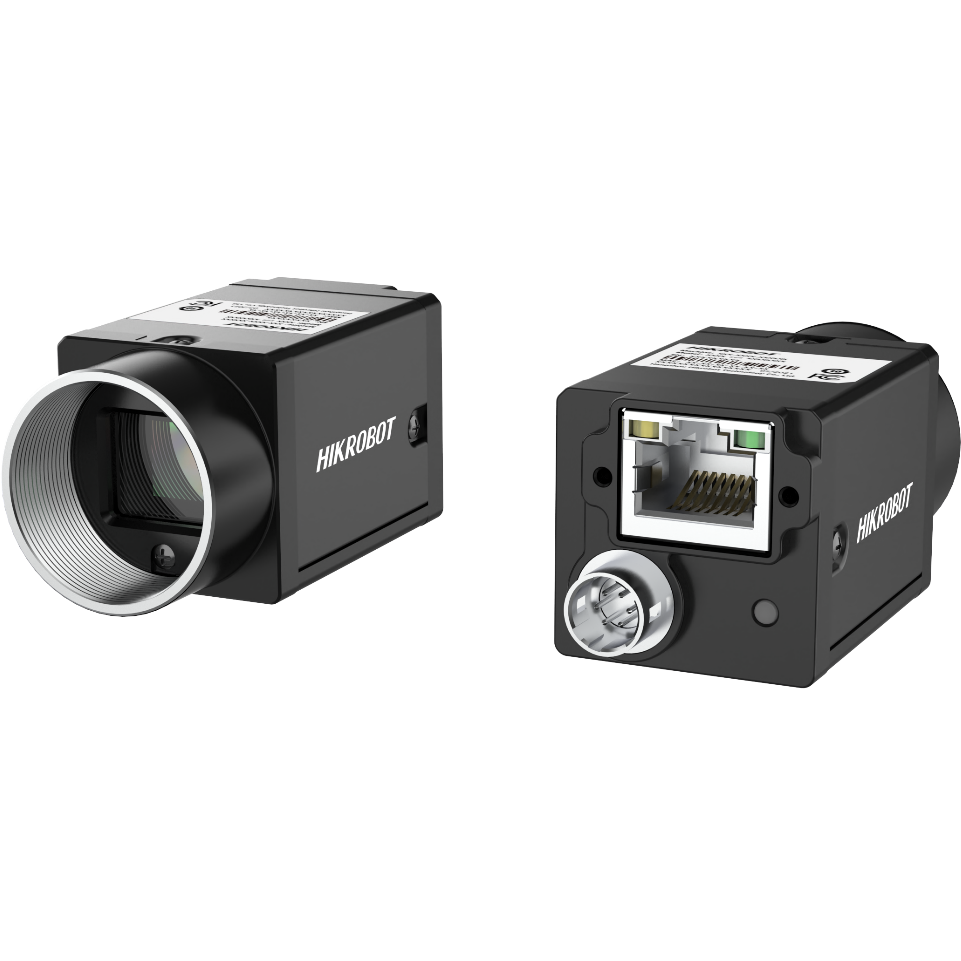

MV-CU016-10GM

Key Feature Adopts low power consumption design with stable performance. Supports auto and manual adjustment of gain, exposure time, etc. Supports hardware trigger, software trigger, free run, etc. Adopts GigE interface and max. transmission distance of 100 meters without relay. Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.   Available Model MV-CU016-10GM Dimension *The data herein may vary based on the environment,

상세 스펙

시리즈	CU AreaScan
제조사	Hikvision
센서 제조사	Sony
센서	Sony® IMX296
센서 크기	5.0 x 3.7 mm
픽셀 크기	3.45 µm
해상도	1440 × 1080
속도	65.8 fps
셔터	Global
컬러/모노	Mono
인터페이스	GigE
마운트	C
제품 크기	29 × 29 × 42 (1.1" × 1.1" × 1.7")
무게	Approx. 100 g (0.2 lb.)
전원	9 VDC to 24 VDC, PoE is optional
소비전력	2
