HikvisionAreaScan

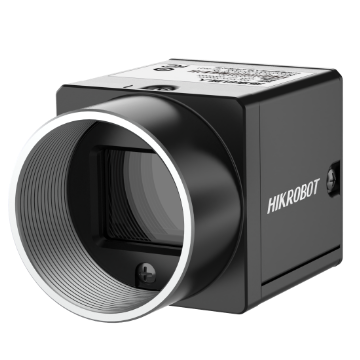

MV-CU020-90UC
Key Feature Adopts optimized hardware design and low-power design with stable performance. Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, and Gamma correction, etc. Supports customized ROI, horizontal and vertical reverse image output. Adopts compact design for flexible installation. Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard. Available Model MV-CU020-90UC Dimension *The data her
상세 스펙
| 시리즈 | CU AreaScan |
| 제조사 | Hikvision |
| 센서 | GMAX4002 |
| 센서 크기 | 8.2 x 4.8 mm |
| 픽셀 크기 | 4 µm |
| 해상도 | 2048 × 1200 |
| 속도 | 150.2 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | USB3.0 |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 30 (1.1" × 1.1" × 1.2") |
| 무게 | Approx. 80 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, supports USB power supply |
| 소비전력 | 2.2 |
빠른 스펙
해상도2048 × 1200
속도150.2 fps
인터페이스USB3.0
셔터Global
센서GMAX4002
