HikvisionAreaScan

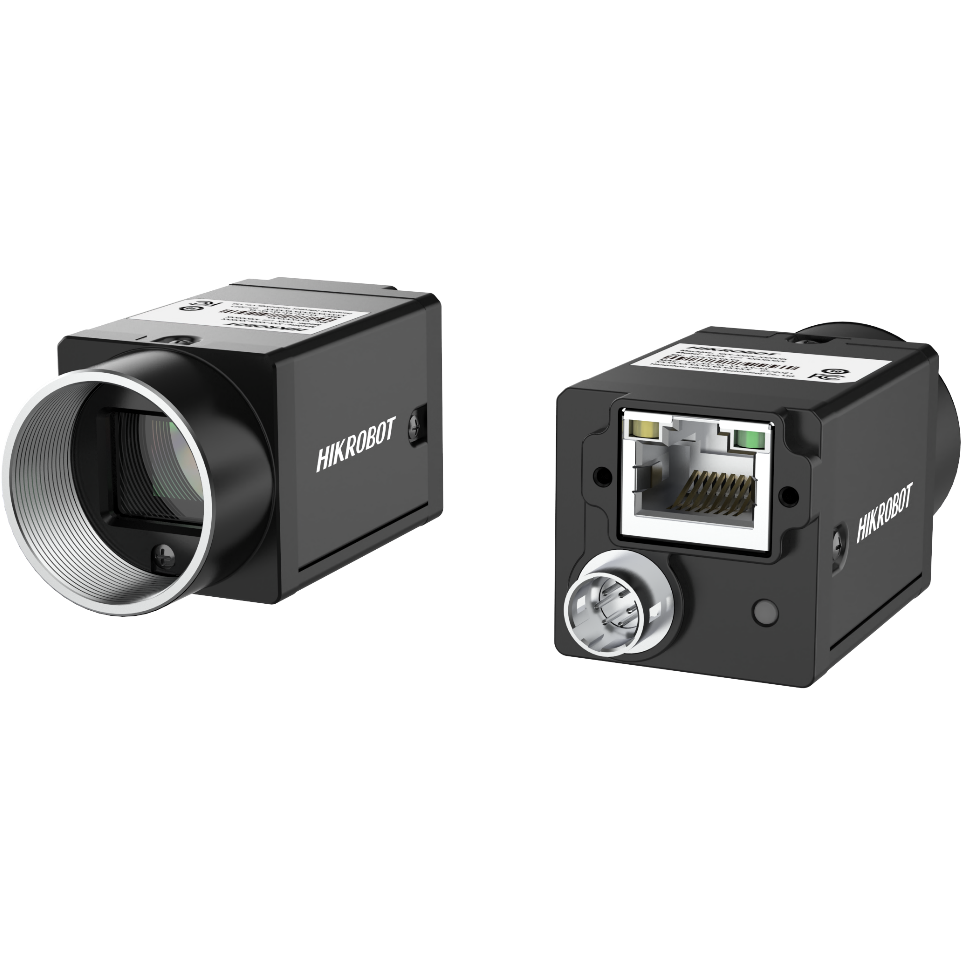

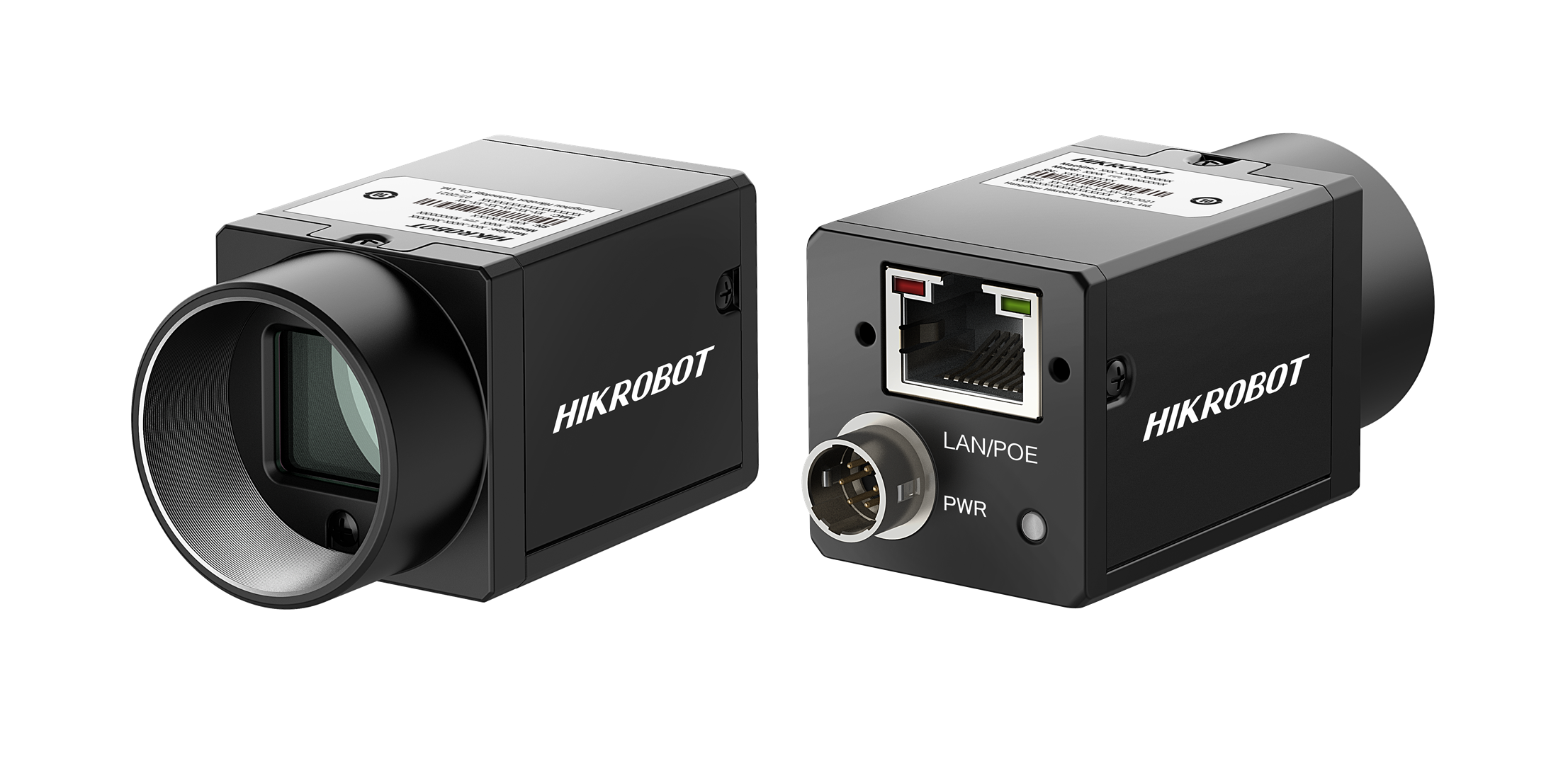

MV-CU060-60GM
Key Feature Adopts low consumption design with stable performance. Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc. Adopts GigE interface and max. transmission distance of 100 meters without relay. Adopts compact design to meet small spatial requirements. Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard. Available Model MV-CU060-60GM Dimension *The data he
상세 스펙
| 시리즈 | CU AreaScan |
| 제조사 | Hikvision |
| 센서 | BSI |
| 센서 크기 | 6.4 x 3.9 mm |
| 픽셀 크기 | 2 µm |
| 해상도 | 3200 × 1944 |
| 속도 | 19 fps |
| 셔터 | Rolling |
| 컬러/모노 | Mono |
| 인터페이스 | GigE |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 42 (1.1" × 1.1" × 1.7") |
| 무게 | Approx. 100 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, PoE is optional |
| 소비전력 | 1.6 |
빠른 스펙
해상도3200 × 1944
속도19 fps
인터페이스GigE
셔터Rolling
센서BSI
