HikvisionAreaScan

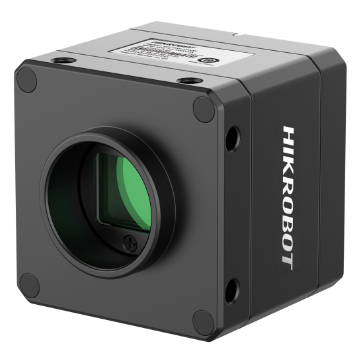

MV-CH120-90Y2M-C-NN
Key Feature Resolution of 4096 × 3008, pixel size of 3.4. Adopts Global CMOS sensor to provide high dynamic range, SNR, and high-quality image. Adopts CXP-12 interface to transmit data. Supports Off, Once, and Continuous exposure modes. Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard. Available Model MV-CH120-90Y2M-C-NN Dimension *The data herein may vary based on the environment, objects and other vario

상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Gpixel |
| 센서 | Gpixel GMAX3412 |
| 센서 크기 | 13.9 x 10.2 mm |
| 픽셀 크기 | 3.4 µm |
| 해상도 | 4096 × 3008 |
| 속도 | 149 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | CoaXPresss |
| 마운트 | C |
| 제품 크기 | 50 × 50 × 45 (2.0" × 2.0" × 1.8") |
| 무게 | Approx. 207 g (0.5 lb.) |
| 전원 | 9 VDC to 24 VDC, CXP-0 supports PoCXP |
| 소비전력 | 6.1 |
빠른 스펙
해상도4096 × 3008
속도149 fps
인터페이스CoaXPresss
셔터Global
센서Gpixel GMAX3412
